Metl-Span’s CF Striated metal panels are an appealing alternative to typical flat wall panels. The exterior face is lightly profiled with narrow longitudinal striations, creating a subtle shadow effect while exhibiting a virtually flat appearance from a distance. The longitudinal Striated metal panel is an exceptional value, combining the aesthetics of a flat wall panel with the high insulation ratings of an insulated foam core.
| Coverage Width | 24″*, 30″, 36″, 42″ |
| Thermal Values – R-Value & U-Factor | U-Factor(BTU/h-ft2*fahrenheit) Panel Width: 42″ at 35 degrees 2″ = 0.058 2.5″ = 0.045 3″ = 0.038 4″ = 0.028 R-Value (h*ft2*F/BTU) Panel Width: 42″ at 35 degrees 2″ = 17.9 2.5″ = 22.4 3″ = 26.9 4″ = 35.9 |
| Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. |
| Interior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga. |
| Finishes | Fluropon, Fluropon Premier, Fluropon Classic, Flurothane, Flurothane Coastal, WeatherXL, Igloo White Polyester |
| Joint | Offset double tongue-and-groove with extended metal shelf for positive face fastening |
| Length | PIR NON-DIRECTIONAL EMBOSSED 8’-0” to 40’-0” for 36” Vertical 8’-0” to 32’-0” for 42” Vertical UNEMBOSSED 8’-0” to 16’-0” Vertical PUR NON-DIRECTIONAL EMBOSSED 8′-0″ to 32′-0″ Horizontal 8′-0″ to 40′-0″ for 24″, 30″, 36″ Vertical 8′-0″ to 32′-0″ for 42″ Vertical UNEMBOSSED 8′-0″ to 16′-0″ Horizontal 8′-0″ to 16′-0″ Vertical |
| Thickness | 2″, 2½″, 2¾″**, 3″, 4″ |

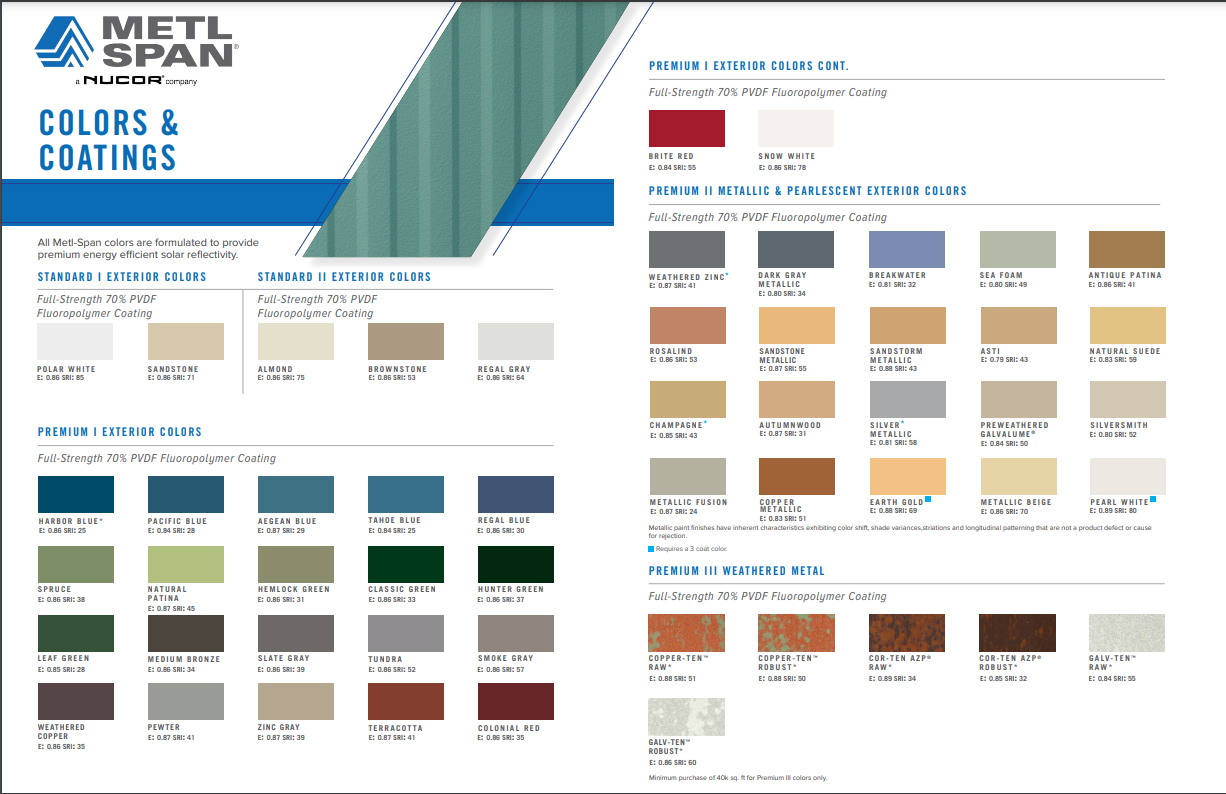

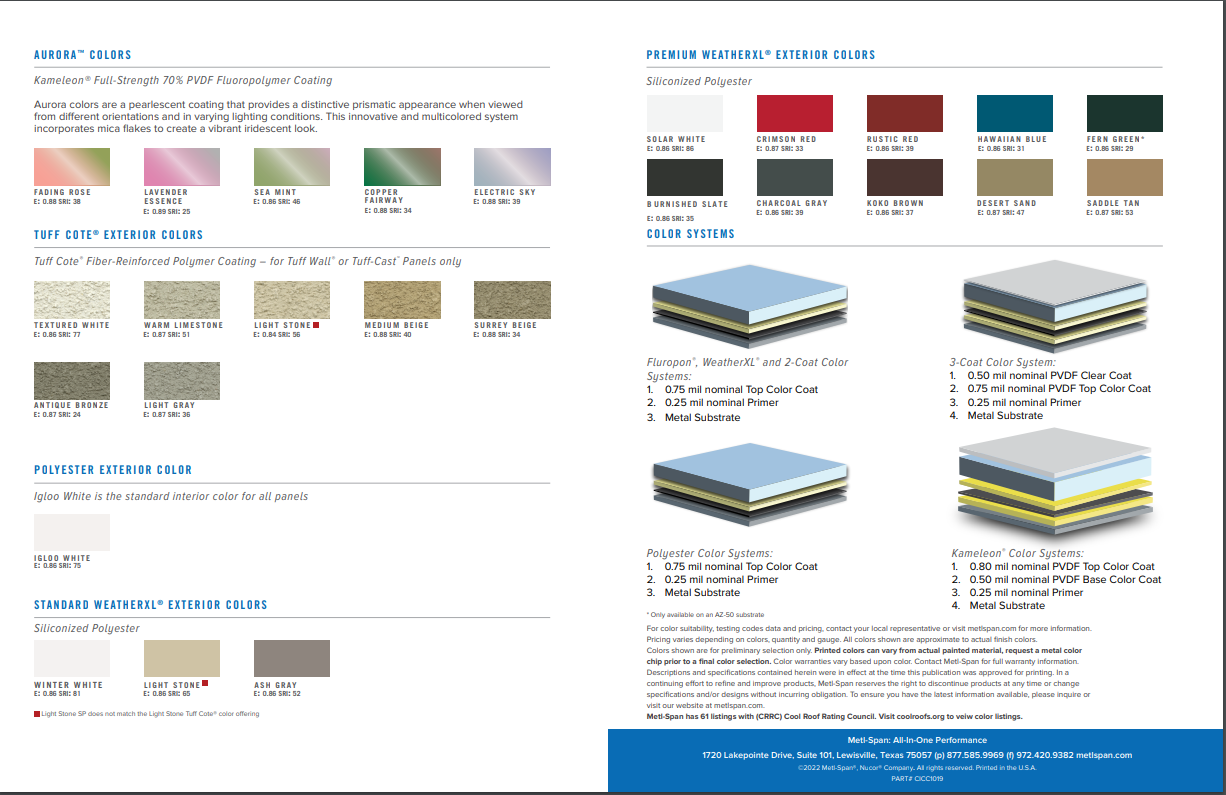

Premium Color Options
Standard Color Options
1. Metallic paint finishes will exhibit color shift, shade variances, striations and longitudinal patterning that are inherent characteristics and are not a product defect or cause for rejection.
2. All Metl-Span colors are formulated to provide maximum energy-efficiency and solar reflectivity. All standard available Premium I and Premium II colors have been formulated for maximum solar reflectance.
3. Prices vary by color, gauge and quantity of metal. Please contact your Metl-Span representative for complete information.
4. All colors shown are approximate actual finish colors displayed as accurately as possible.
5. Light Stone – Tuff Cote® does not match the Light Stone – Standard SP color offering.
2012 Master Format™ Section 07 42 13.19
All specifications and designs are subject to change without notice.
The Load Span Table below is based on Allowable Stress Design (ASD). For loads calculated based on ASCE 7-10 (LRFD), please refer to section 2.4.1 of ASCE 7-10 for the applicable load combinations using Allowable Stress Design.
For FM Global Requirements, click here
US Striated Wall Panels Load Charts
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Test/Approval | Test Method | Test Title | Results |
|---|---|---|---|
| Fire US | ASTM E84 | Surface Burning Characteristics of Building Materials | Flame spread ≤25, smoke developed ≤450 |
| ASTM E119 | Fire Tests of Building Construction Materials | One hour non-load bearing rating with two layers of Type X Gypsum Vertical or horizontal installation | |
| FM 4880 | Class 1 Fire Rating of Insulated Wall, Ceiling and Roof Panels | Product approved Exterior wall requires FM 4881 approval | |
| NFPA 259 | Test Method for Potential Heat of Building Materials | Potential heat of foam plastic insulation contained in the assembly tested in accordance with NFPA 285-19 | |
| NFPA 285-19 | Evaluation of Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies | Panel assembly met the requirements of the standard | |
| NFPA 286 | Standard Methods of Fire Tests for Evaluating Contribution of Wall and Ceiling Interior Finish to Room Fire Growth | Test specimen met the criteria of the IBC Section 803.1.2.1 | |
| Fire Canada | CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | One hour non-load bearing fire rating with two layers of Type X Gypsum |
| CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | Meets 10 minute stay-in-place requirements | |
| CAN/ULC S102 | Surface Burning Characteristics of Building Materials and Assemblies | Meets the National Building Code of Canada requirements | |
| CAN/ULC S134 | Fire Test of Exterior Wall Assemblies | Complies with the fire-spread and heat-flux limitations required by the National Building Code of Canada | |
| CAN/ULC S138 | Fire Growth of Insulated Building Panels in a Full-Scale Room Configuration | Met the criteria of the standard | |
| Structural | ASTM E72 | Standard Test Methods of Conducting Strength Tests of Panels for Building Construction | See load chart |
| Thermal Performance | ASTM C518 | Steady-State Thermal Transmission Properties by Means of the Heat-Flow Meter Apparatus | K-Factor of 0.112 BTU.in/hr.ft2.°F at 35° F mean core |
| ASTM C1363 | Thermal Performance of Building Materials and Envelope Assemblies | 35° 2″ = .058 2.5″ = .045 3″ = .038 4″ = .028 | |
| Air Infiltration | ASTM E283 | Rate of Air Leakage Through Curtain Walls Under Specified Pressure Differences | <0.04 cfm/ft2 air infiltration rate at static pressure differential of 1.57 psf Vertical or Horizontal installation |
| ASTM E2357 | Air Leakage of Air Barrier Assemblies | <0.04 cfm/ft2 air infiltration rate at static pressure differential of 1.57 psf, after 2,000 cycles at +/- 16.71 psf Vertical or Horizontal installation; with and without penetrations | |
| Water Infiltration | ASTM E331 | Water Penetration of Exterior Walls by Uniform Static Air Pressure Differences | No uncontrolled leakage when tested to a static pressure differential of 6.24 psf for 2 hours Vertical or Horizontal installation |
Centrum at Mohawk College’s Stoney Creek Campus is a two-story, 12,314-square-foot facility where multiple trades can collaborate and physically work together, focused on installing and maintaining cutting-edge renewable and sustainable resource materials, including solar and wind energy. The facility features a 2,551-square-foot classroom theater. Mohawk annually serves 2,400 apprenticeship students and is one of the largest trainers of apprentices in Ontario.
View Project

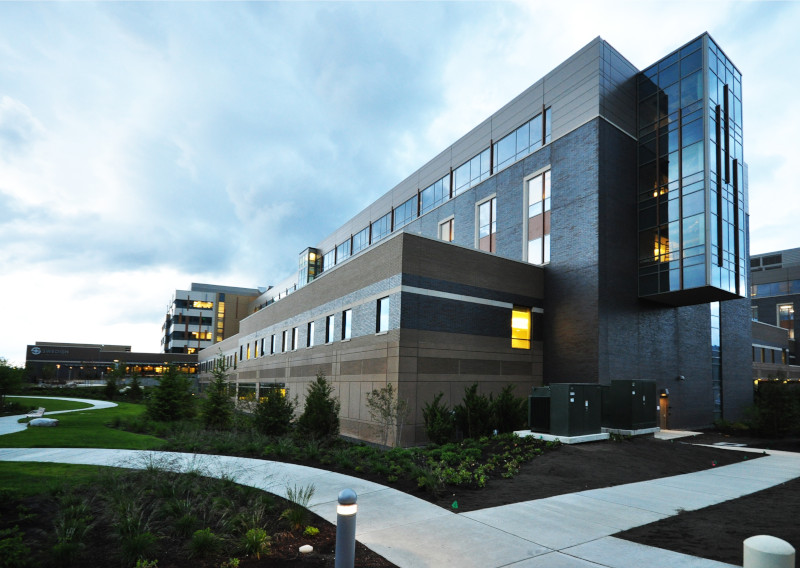

Located in the foothills of the scenic Cascade Mountains, the new Swedish Medical Center in Issaquah, WA is one of the most energy efficient hospital campuses in the nation. The 550,000 square foot, two-phased project includes an acute care hospital and adjoining medical office building.
View Project
Approximately 8,500 sq. ft. of Metl-Span CF-36 Striated Insulated Wall Panels were selected as a key component on the third-largest Whole Foods store in the world. The 2” panels, finished in custom Vancouver Copper Kynar, were installed horizontally.
