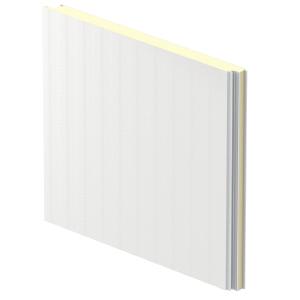

CF Partition insulated metal wall panels are ideal for interior wall applications. They offer an economical design for interior walls, ideal for commercial and industrial designs. Our interior partition wall panels are available with an exterior façade in either of the lightly corrugated profiles of Mesa with 1/8” deep planks or Light Mesa with 1/16” deep planks. The corrugation in the profile provides added strength on both faces and offers symmetry between rooms. Designed to be the most economical choice for interior, simplify installation with these commercial and industrial wall partitions as they create symmetry outside and inside room-to-room.
Partition panels are also ideal for cold storage applications, including dry goods warehouses, cooler and freezer buildings, food processing facilities, and all temperature-controlled environments. This panel is commonly used to achieve and maintain temperature control and insulation values that are critical. Our representatives are available to find the right option for your needs. Contact us below to learn more!
The table indicates PUR values. For PIR values, please refer to the data sheet available under the Literature tab.
| Coverage Width | 44″, 44.4″ |
| Thermal Values – R-Value & U-Factor | U-Factor (BTU/h-ft2*Fahrenheit) Panel Width: 44.4″ 2″ = 0.059 2.5″ = 0.046 3″ = 0.039 4″ = 0.029 5″ = 0.023 6″ = 0.019 R-Value (h*ft2*F/BTU) Panel Width: 44.4″ 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 5″ = 43.7 6″ = 52.5 |
| Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga~. |
| Interior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga~. |
| Finishes | Fluropon®, Fluropon® Premier, Fluropon® Classic, Flurothane®, Flurothane® Coastal, WeatherXL™, Igloo White Polyester |
| Joint | Offset double tongue-and-groove |
| Core | Foamed-in-place, zero ozone depleting (zero ODP) FM Class 1 approval. |
| Length | Non-Directional Embossed 8′-0″ to 52′-0″ Vertical Unembossed 8′-0″ to 40′-0″ Vertical |
| Thickness | 2″, 2 ½”, 2 ¾”*, 3″, 4″, 5″, 6″ |
1. Metallic paint finishes will exhibit color shift, shade variances, striations and longitudinal patterning that are inherent characteristics and are not a product defect or cause for rejection.
2. All Metl-Span colors are formulated to provide maximum energy-efficiency and solar reflectivity. All standard available Premium I and Premium II colors have been formulated for maximum solar reflectance.
3. Prices vary by color, gauge and quantity of metal. Please contact your Metl-Span representative for complete information.
4. All colors shown are approximate actual finish colors displayed as accurately as possible.
5. Light Stone – Tuff Cote® does not match the Light Stone – Standard SP color offering.
2012 Master Format™ Section 07 42 13.19
All specifications and designs are subject to change without notice.
The Load Span Tables below, excluding Partition Wall, are based on Allowable Stress Design (ASD). For loads calculated based on ASCE 7-10 (LRFD), please refer to section 2.4.1 of ASCE 7-10 for the applicable load combinations using Allowable Stress Design.
For FM Global Requirements, click here
US Wall Panels Load Charts
IMPORTANT NOTES:
Deflection caused by temperature differential induced thermal bow is not addressed in the above table and may result in allowable spans that are less than the spans listed above and may require the use of heavier 24 or 22 gage panel facings at added cost. Except for self-supporting the dead weight of the panel, partition wall panels are non-load bearing. Ceiling panels must be supported from the structure above or by an internal support structure. Panel skins must be captured at both ends of the panel by supporting members designed to support reaction pressures from a 5 psf interior pressure. CF-42 = 42″ wide. CF-45 = 44.5″ wide.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
NOA Testing: CF 42 inch panels testing approvals
| Test/Approval | Test Method | Test Title | Results |
|---|---|---|---|
| Fire US | ASTM E84 | Surface Burning Characteristics of Building Materials | Flame spread ≤25, smoke developed ≤450 |
| ASTM E119 | Fire Tests of Building Construction Materials | One hour non-load bearing rating with two layers of Type X Gypsum Vertical or horizontal installation | |
| FM 4880 | Class 1 Fire Rating of Insulated Wall, Ceiling and Roof Panels | Product approved Exterior wall requires FM 4881 approval | |
| NFPA 259 | Test Method for Potential Heat of Building Materials | Potential heat of foam plastic insulation contained in the assembly tested in accordance with NFPA 285-19 | |
| NFPA 285-19 | Evaluation of Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies | Panel assembly met the requirements of the standard | |
| NFPA 286 | Standard Methods of Fire Tests for Evaluating Contribution of Wall and Ceiling Interior Finish to Room Fire Growth | Test specimen met the criteria of the IBC Section 803.1.2.1 | |
| Fire Canada | CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | One hour non-load bearing fire rating with two layers of Type X Gypsum |
| CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | Meets 10 minute stay-in-place requirements | |
| CAN/ULC S102 | Surface Burning Characteristics of Building Materials and Assemblies | Meets the National Building Code of Canada requirements | |
| CAN/ULC S134 | Fire Test of Exterior Wall Assemblies | Complies with the fire-spread and heat-flux limitations required by the National Building Code of Canada | |
| CAN/ULC S138 | Fire Growth of Insulated Building Panels in a Full-Scale Room Configuration | Met the criteria of the standard | |
| Structural | ASTM E72 | Standard Test Methods of Conducting Strength Tests of Panels for Building Construction | See load chart |
| Thermal Performance | ASTM C518 | Steady-State Thermal Transmission Properties by Means of the Heat-Flow Meter Apparatus | K-Factor of 0.112 BTU.in/hr.ft2.°F at 35° F mean core |
| ASTM C1363 | Thermal Performance of Building Materials and Envelope Assemblies | 35° 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 5″ = 43.7 6″ = 52.5 | |
| Air Infiltration | ASTM E283 | Rate of Air Leakage Through Curtain Walls Under Specified Pressure Differences | <0.04 cfm/ft2 air infiltration rate at static pressure differential of 1.57 psf Vertical or Horizontal installation |
| ASTM E2357 | Air Leakage of Air Barrier Assemblies | <0.04 cfm/ft2 air infiltration rate at static pressure differential of 1.57 psf, after 2,000 cycles at +/- 16.71 psf Vertical or Horizontal installation; with and without penetrations | |
| Water Infiltration | ASTM E331 | Water Penetration of Exterior Walls by Uniform Static Air Pressure Differences | No uncontrolled leakage when tested to a static pressure differential of 6.24 psf for 2 hours Vertical or Horizontal installation |
