Single Skin: Exposed Fasteners

Metl-Span’s exposed fastener metal panel systems help provide contemporary and environmentally friendly aesthetics. Our panels can be installed both vertically and horizontally, providing numerous design options. All Exposed Fastener metal wall panels may be installed in a variety of rain screen applications to form a complete wall system and are available in a variety of rib heights, rib spacings, panel widths, and slopes.

For FM Global Requirements, click here

All literature is listed below product showcases

Applications

Schools
Hospitals
Manufacturing Facilities
Warehouses
Distribution Centers

Equipment Maintenance Buildings
Retail Buildings
Utility Buildings
Offices

Features & Benefits

Allows for cost-effective and timely installation
Provides superior protection against the elements
Offers improved and streamlined design
Eliminates the need for back fastening
Optimizes your building projects

Product Selection

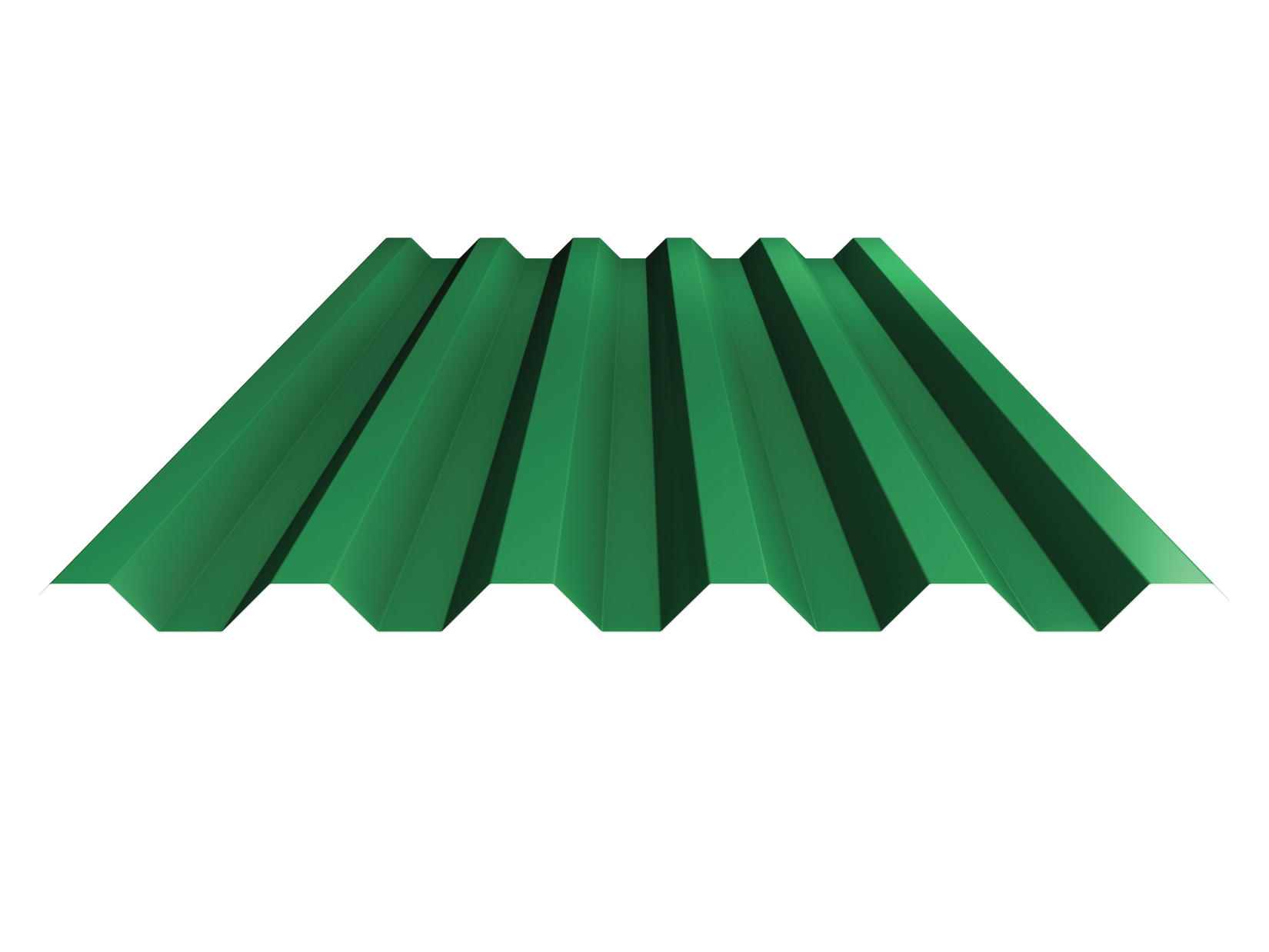

7.2 Rib

7.2 Panel is a 36″ wide panel with symmetrical 1 ½” high ribs on 7.2″ centers. This rugged panel also offers excellent spanning capability.

PBR

The PBR Panel is used for a wide variety of architectural, commercial, and industrial applications. PBR is a structural panel with exposed fasteners used on wall applications.

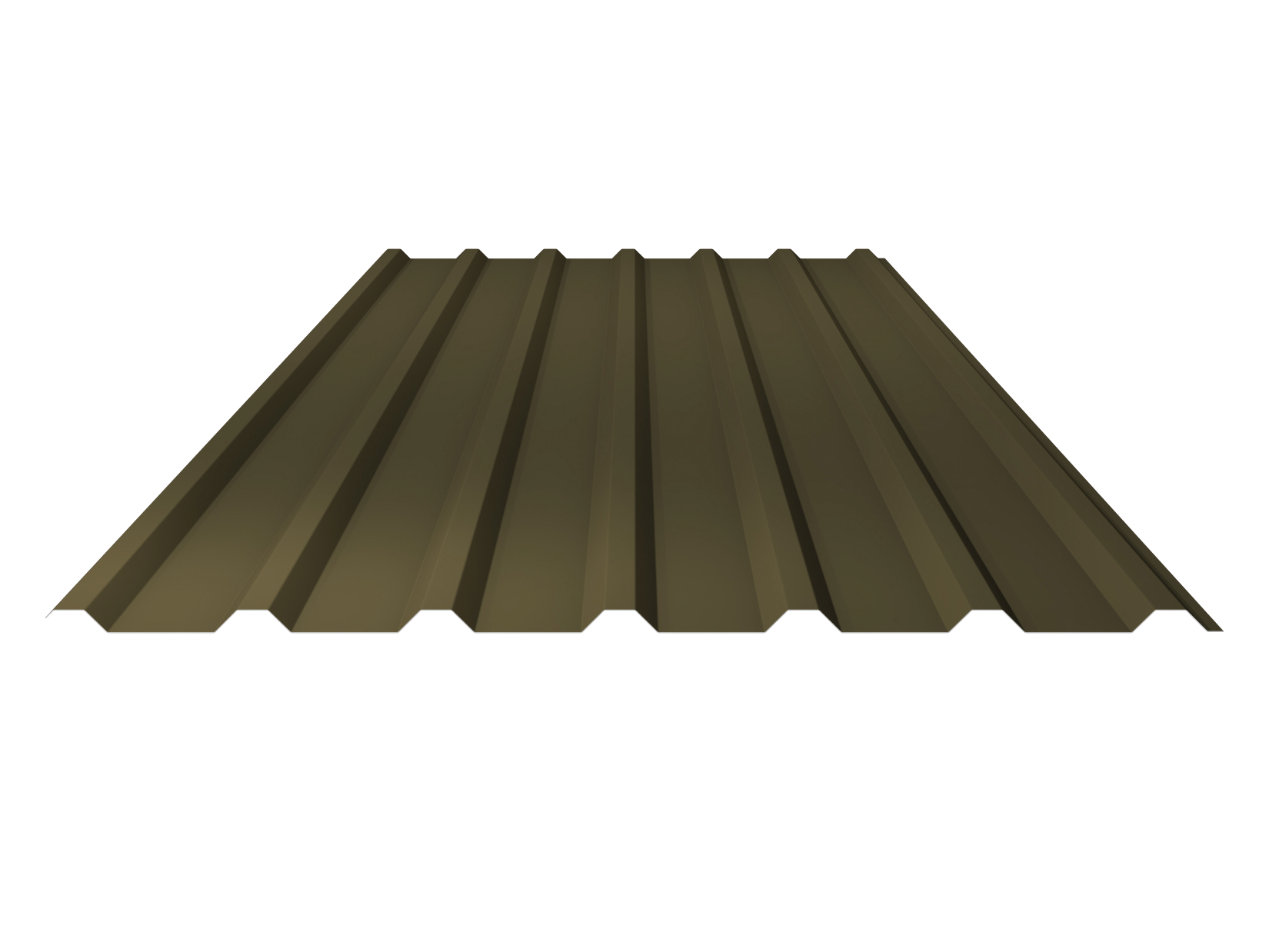

PBU

The PBU panel is an exposed fastener system that can be used both horizontally and vertically for wall applications. It can be installed directly over purlins or joists and gives designers a contemporary appearance for their building project.

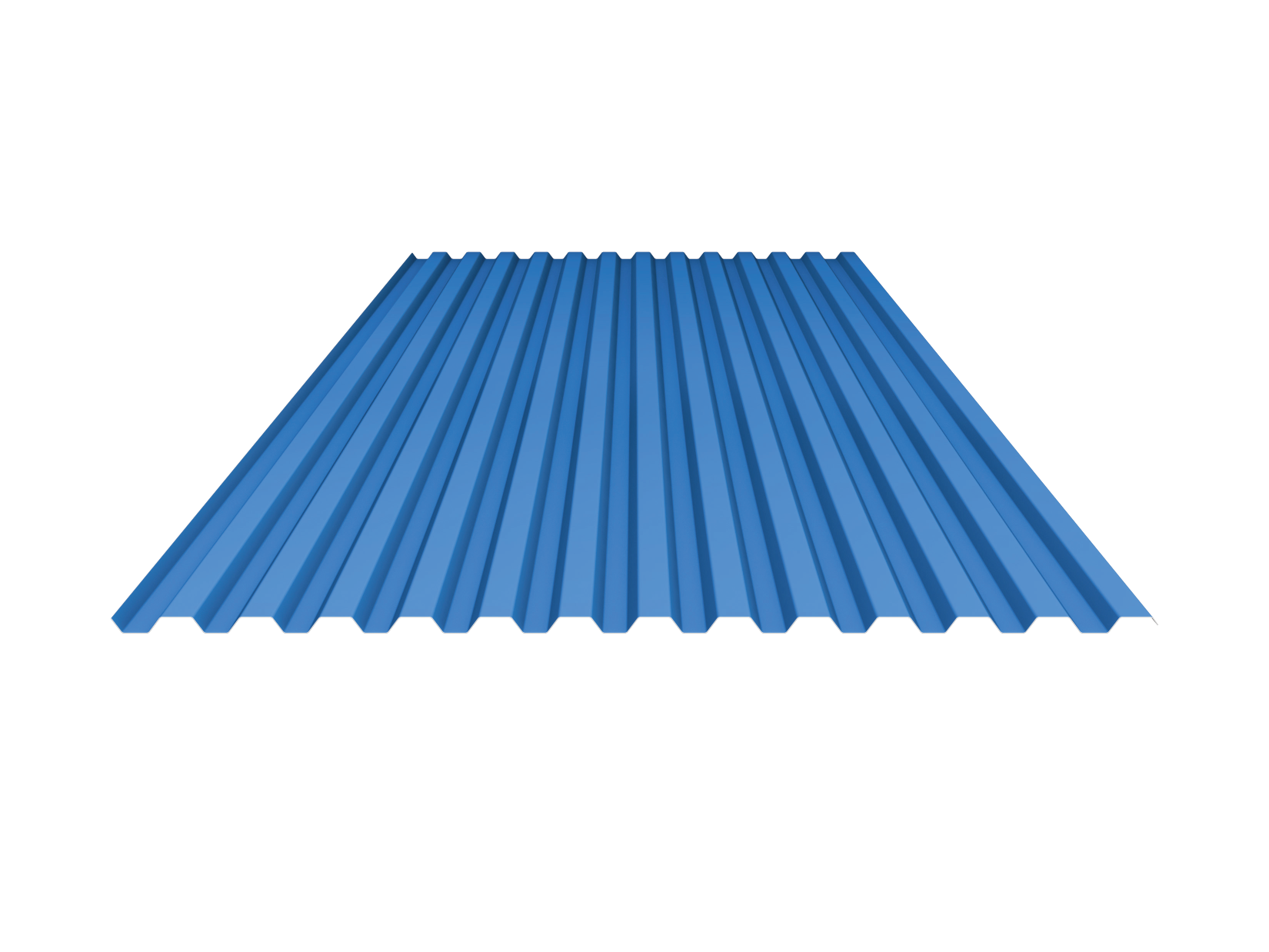

PBD

The PBD panel is an exposed fastener wall panel with symmetrical ribs from top to bottom.

PBC

PBC panels are attached to a building structure with exposed fasteners. It can be installed vertically or horizontally, but is most commonly used in horizontal wall applications.

BR5-36

BR5-36 is a sturdy panel with 36″ coverage, and uniformity spaced ribs at 7.2″ o.c. As a wall panel BR5-36 laps in the low cell.

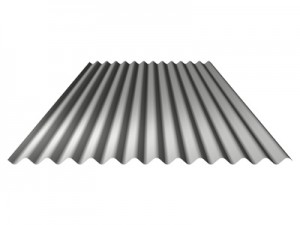

Econolap 3/4″

Econolap 3/4″ profile offers a more pronounced corruption and increased span capability over most corrugated exposed fastener wall panels. When used in a wall application the Econolap 3/4″ side laps at the high cell.

MR3-36

The 3″ depth MR3-36 provides sturdy construction which allows for longer spans and a reduction in the number of supports required. As a wall panel, MR3-36 side laps in the low cell.

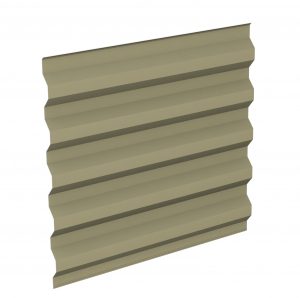

Style-Rib

Style-Rib is a high strength panel with 36″ coverage, and uniformity spaced ribs at 7.2″ o.c. As a wall panel, Style-Rib side laps in the low cell.

Super-Rib

All Exposed Fastener metal wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Exposed fastener metal panels are available in a variety of rib heights, rib spacings, panel widths and slopes.

TR4-36

TR4-36 profile features four 1 1/2″ deep ribs on 9″ centers which gives an attractive, standing rib appearance. TR4-36 side laps in the high cell when used as a wall panel.
