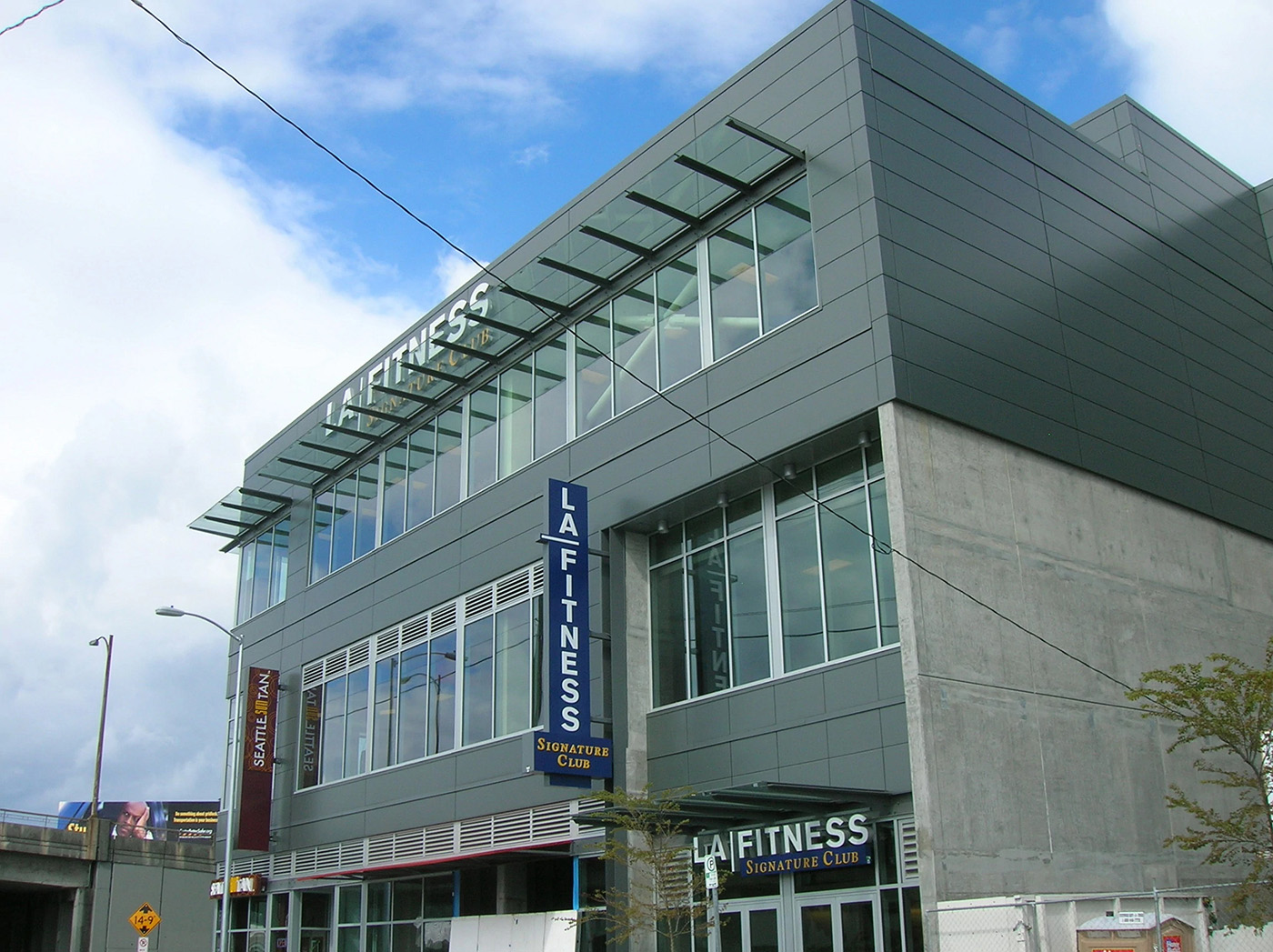

Ballard Blocks
Approximately 51,000 sq. ft. of Metl-Span CFA-30 insulated wall panels were utilized. The 2” panels were finished in custom color Zactique II and were installed horizontally.
View Project
Commercial & Industrial Products
CF Architectural Wall Panel
CF Architectural Wall Panel
Metl-Span’s CF Architectural Horizontal metal panels are ideal for high-profile commercial and industrial applications. With their flat yet monolithic look, these panels provide an attractive appearance while allowing for design flexibility.
Our insulated horizontal wall panels are a sustainable solution as they are easily installed. They provide a sleek and elegant facade for any project, while simultaneously increasing the building’s energy efficiency.
Whether you’re working on a new building or renovating an existing one, the CF Architectural Horizontal flat metal wall panels are the ideal option for an aesthetically pleasing and contemporary look.
We also offer the CF Architectural Vertical Metal Wall panel, designed for high profile architectural applications. These insulated vertical metal panels create tall, clean lines, creating a spacious appearance and are the sustainable solution for any building project.
Architects are given design flexibility when utilizing these panels as they offer a flat, monolithic appearance. They feature concealed clips and fasteners in the side joint, creating a sleek aesthetic for high-profile buildings. The panel is available in custom widths and preformed corners, ensuring design requirements are met.
The values in the table represent PUR values.
Table Covers Both Horizontal and Vertical Values.
| Coverage Width | 24″, 30″, 36″ |
| Thermal Values – R-Value & U-Factor | U-Factor(BTU/h-ft2*fahrenheit) 2″ = 0.059 2.5″ = 0.046 3″ = 0.038 4″ = 0.028 R-Value (h*ft2*F/BTU) 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 |
| Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 22 Ga. |
| Interior Face | G-90 galvanized, or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga. |
| Finishes | Fluropon, Fluropon Premier, Fluropon Classic, Flurothane, Flurothane Coastal, WeatherXL, Igloo White Polyester |
| Joint | Offset double tongue-and-groove with extended metal shelf for positive face fastening |
| Length | Non- Directional Embossed 8′-0″ to 32′-0″ Unembossed 8′ – 0″ to 16′ – 0″ |
| Thickness | 2″, 2 ½”, 3″, 4″ |
Design Features and Benefits
- Flat, flush appearance for vertical installation
- Available in custom widths and preformed corners
- Utilizes concealed clips and eliminates thermal short circuits
- Easy and fast installation, with reduced construction labor costs
- Can be used in conjunction with other Metl-Span joint profiles
- Optional concealed clip, V6 X-Span Clip, can be used as an alternative
Colors
ICI Color Chart
1. Metallic paint finishes will exhibit color shift, shade variances, striations and longitudinal patterning that are inherent characteristics and are not a product defect or cause for rejection.
2. All Metl-Span colors are formulated to provide maximum energy-efficiency and solar reflectivity. All standard available Premium I and Premium II colors have been formulated for maximum solar reflectance.
3. Prices vary by color, gauge and quantity of metal. Please contact your Metl-Span representative for complete information.
4. All colors shown are approximate actual finish colors displayed as accurately as possible.
5. Light Stone – Tuff Cote® does not match the Light Stone – Standard SP color offering.
Download Our Literature
CF Architectural in horizontal flat currently unavailable in PIR.
All specifications and designs are subject to change without notice.
Metl-Span® CF Architectural Wall Panel For Commercial & Industrial Buildings
2012 Master Format™ Section 07 42 13.19
All specifications and designs are subject to change without notice.
Load Span Tables
The Load Span Table below is based on Allowable Stress Design (ASD). For loads calculated based on ASCE 7-10 (LRFD), please refer to section 2.4.1 of ASCE 7-10 for the applicable load combinations using Allowable Stress Design.
For FM Global Requirements, click here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
TESTING: CF Architectural Metal Wall Panel Vertical and Horizontal
| Test/Approval | Test Method | Test Title | Results |
|---|---|---|---|
| Fire US | ASTM E84 | Surface Burning Characteristics of Building Materials | Flame spread <25, smoke developed <450 |
| ASTM E119 | Fire Tests of Building Construction Materials | One hour non-load bearing rating with two layers of Type X Gypsum Vertical or horizontal installation | |
| FM 4880 | Class 1 Fire Rating of Insulated Wall, Ceiling and Roof Panels | Product approved (Exterior wall requires FM 4881, see Structural approvals) | |
| NFPA 259 | Test Method for Potential Heat of Building Materials | Potential heat of foam plastic insulation contained in the assembly tested in accordance with NFPA 285 | |
| NFPA 285-19 | Evaluation of Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies | Panel assembly met the requirements of the standard | |
| NFPA 286 | Fire Tests for Evaluating Contribution of Wall and Ceiling Finish to Roof Fire Growth | Test specimen met the criteria of the IBC Section 803.1.2.1 | |
| Fire Canada | CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | One hour non-load bearing fire rating with two layers of Type X Gypsum |
| CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | Meets 15 minute stay-in-place requirements | |
| CAN/ULC S102 | Surface Burning Characteristics of Building Materials and Assemblies | Meets the National Building Code of Canada requirements | |
| CAN/ULC S134 | Fire Test of Exterior Wall Assemblies | Complies with the fire-spread and heat-flux limitations required by the National Building Code of Canada | |
| CAN/ULC S138 | Fire Growth of Insulated Building Panels in a Full-Scale Room Configuration | Met the criteria of the standard | |
| Structural | ASTM E72 | Strength Tests of Panels for Building Construction | See load chart |
| ASTM E1592 | Structural Performance of Metal Roof and Siding Systems by Uniform Static Air Pressure Differences | See load chart | |
| FM 4881 | Class 1 Exterior Wall Structural Performance | See FM Global Requirements (Interior wall requires FM 4880, see Fire approvals) | |
| Thermal Performance | ASTM C518 | Steady-State Thermal Transmission Properties by Means of the Heat-Flow Meter Apparatus | K-Factor of 0.114 BTU.in/hr.ft2.°F at 35° F mean core |
| ASTM C1363 | Thermal Performance of Building Materials and Envelope Assemblies | See Thermal Performance Guide | |
| Air Infiltration | ASTM E283 | Rate of Air Leakage Through Curtain Walls Under Specified Pressure Differences | <0.01 cfm/ft.2 at 20 psf Vertical or horizontal installation |
| Water Infiltration | ASTM E331 | Water Penetration of Exterior Walls by Uniform Static Air Pressure Differences | No uncontrolled leakage when tested to a static pressure of 20 psf Vertical or horizontal installation |
| Special Approval | Miami-Dade NOA | Product Approval for City of Miami and Dade County | Product has City of Miami and Dade County Notice of Acceptance Vertical installation only |
| State of Florida | Product Approval for the State of Florida | Product has State of Florida approval |
Related Projects
Bay Area Fellowship Church
Bay Area Fellowship Church, Corpus Christi, is considered one of the fastest growing churches in the United States. To continue its growth, the progressive, media-driven church undertook a two-phased construction project on a 90-acre site. The recently concluded Phase 1 includes 92,000 sq. ft. of worship and educational space.
View Project

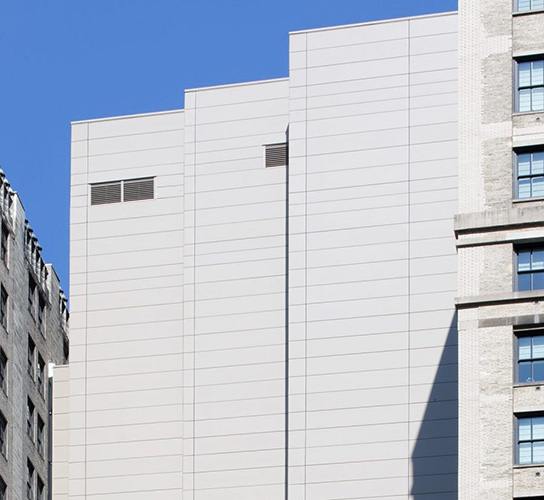

LondonHouse
Historic LondonHouse in downtown Chicago underwent an extensive renovation, starting in 2013. The transformation of this luxury hotel, completed for a grand reopening in May 2016, included insulated metal panels from Metl-Span.
View Project
Metrohm
Metrohm USA, the North American subsidiary of a major Swiss manufacturer, had long outgrown its original office facility in the Tampa Bay region. Their new, $20 million headquarters in nearby Riverview, Fla. will house several dozen new employees in the coming years with meeting rooms and creative stations that could support more than 200 people.
View Project

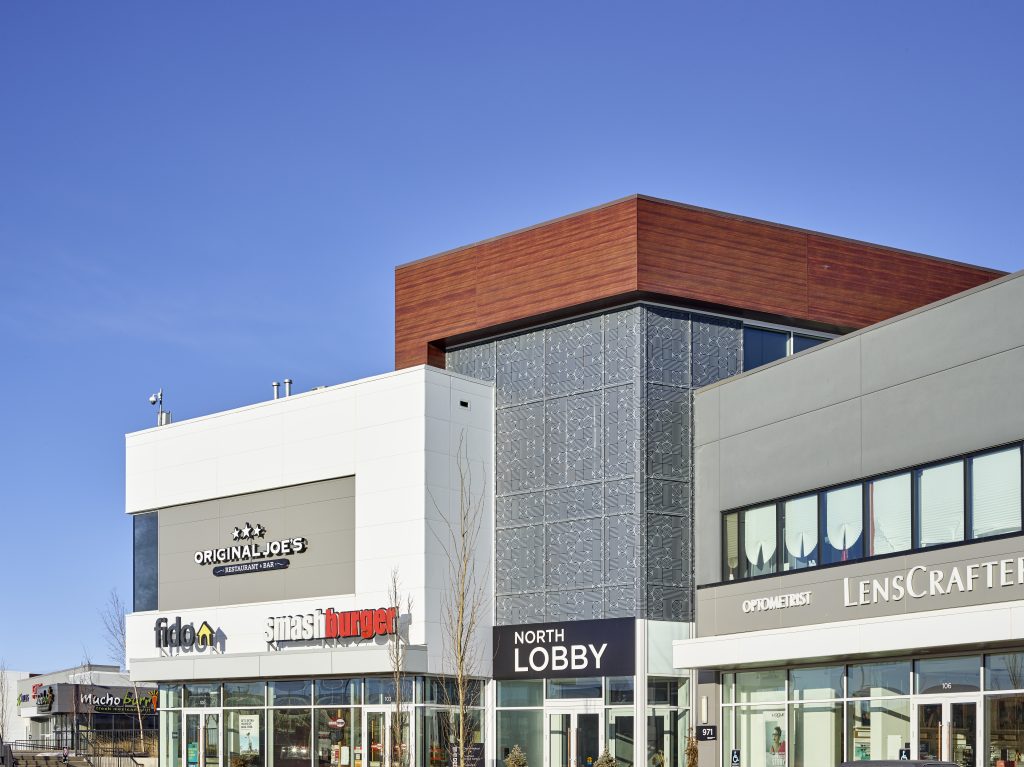

Deerfoot Mall Expansion
