CF 7.2 Insul-Rib™ Wall Panel
Metl-Span’s CF 7.2 Insul-Rib™ insulated and ribbed metal wall panel combines a traditional 7.2 ribbed panel design with an insulated foam core. Ideal for any commercial or industrial application, our panels provide the strength and durability of ribbed metal panels along with the thermal performance of an insulated metal panel. The 7.2 panel’s bold yet ribbed pattern compliments its unique industrial appearance. Its distinctive exterior creates a shadow effect while adding texture, differentiating it from other panels. Since the panel is capable of being installed both vertically and horizontally, architects can be flexible when it comes to design.
Our panels are designed with the lock-and-groove system, allowing for an overall efficient installation, while simultaneously reducing construction labor costs. They are also capable of being combined with other CF joint profiles of the same thickness to create a visually appealing look.
| Coverage Width | Nominal 36″ |
| Thermal Values – R-Value & U-Factor | U-Factor(BTU/h-ft2*fahrenheit) Panel Width: 36″ at 35 degrees 3″ = 0.066 4″ = 0.043 R-Value (h*ft2*F/BTU) Panel Width: 36″ at 35 degrees 3″= 15.2 4″ = 23.3 |
| Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22** Ga. |
| Interior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22 Ga. |
| Finishes | Fluropon, Fluropon Premier, Fluropon Classic, Flurothane, Flurothane Coastal, WeatherXL, Igloo White Polyester |
| Joint | Offset double tongue-and-groove with extended metal shelf for positive face fastening, through fastening required at panel ends |
| Length | NON-DIRECTIONAL EMBOSSED 8′-0″ to 32′-0″ Horizontal 8′-0″ to 40′-0″ Vertical UNEMBOSSED 8′-0″ to 32′-0″ Horizontal 8′-0″ to 40′-0″ Vertical |
| Thickness | 3″, 4″ (Rib height included in thickness) |
- Design Features and Benefits
- Colors
- Literature
- Guide Specs
- Load Span Tables
- Panel Weights
- Details – PDF
- Details – DWG
Design Features and Benefits
- Sweeping profile with unique shadow effects
- Utilizes concealed clips and eliminates thermal short circuits
- Easy and fast installation, with reduced construction labor costs
- Can be used in conjunction with other Metl-Span CF joint profiles of the same thickness
Colors

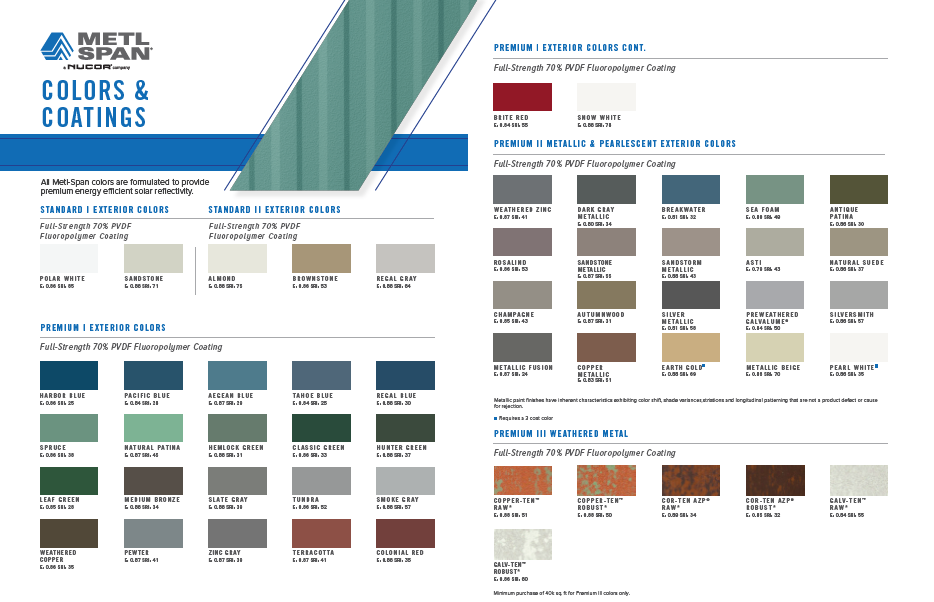

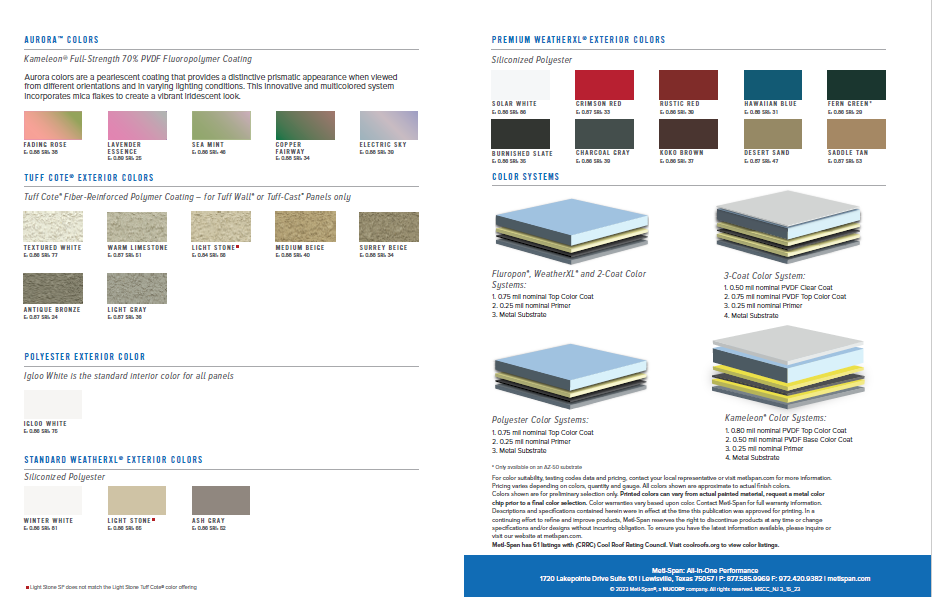

ICI Color Chart
1. Metallic paint finishes will exhibit color shift, shade variances, striations and longitudinal patterning that are inherent characteristics and are not a product defect or cause for rejection.
2. All Metl-Span colors are formulated to provide maximum energy-efficiency and solar reflectivity. All standard available Premium I and Premium II colors have been formulated for maximum solar reflectance.
3. Prices vary by color, gauge and quantity of metal. Please contact your Metl-Span representative for complete information.
4. All colors shown are approximate actual finish colors displayed as accurately as possible.
5. Light Stone – Tuff Cote® does not match the Light Stone – Standard SP color offering.
Download Our Literature
Metl-Span® 7.2 InsulRibTM Wall Panel For Commercial & Industrial Buildings
2012 Master Format™ Section 07 42 13.19
All specifications and designs are subject to change without notice.
Load Span Tables
The Load Span Tables below are based on Allowable Stress Design (ASD). For loads calculated based on ASCE 7-10 (LRFD), please refer to section 2.4.1 of ASCE 7-10 for the applicable load combinations using Allowable Stress Design.
For FM Global Requirements, click here
Panel Weights
Panel Weights in Pounds Per Square Foot
| THICKNESS | GAUGE (EXTERIOR FACE/INTERIOR FACE) |
|---|
| 26/26 | 24/26 | 22/26 | 26/24 | 24/24 | 22/24 | 26/22 | 24/22 | 22/22 | |
| 2.5″ | 2.18 | 2.45 | 2.72 | 2.4 | 2.67 | 2.94 | 2.63 | 2.9 | 3.17 |
| 3″ | 2.28 | 2.55 | 2.82 | 2.5 | 2.77 | 3.04 | 2.73 | 3 | 3.27 |
| 4″ | 2.49 | 2.76 | 3.03 | 2.71 | 2.98 | 3.25 | 2.94 | 3.21 | 3.48 |
| 5″ | 2.7 | 2.97 | 3.24 | 2.92 | 3.19 | 3.46 | 3.15 | 3.42 | 3.69 |
| 6″ | 2.91 | 3.18 | 3.45 | 3.13 | 3.4 | 3.67 | 3.36 | 3.63 | 3.9 |
22 gauge = 1.53
24 gauge = 1.26
26 gauge = .99
Interior Skin
22 gauge = 1.27
24 gauge = 1.04
26 gauge = 0.82
Foam Core
2.5″ = .37
3″ = .47
4″ = .68
5″ = .89
6″ = 1.1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
TESTING: CF 7.2 Insul-Rib Insulated Metal Wall Panel
| Test/Approval | Test Method | Test Title | Results |
|---|---|---|---|
| Fire US | ASTM E84 | Surface Burning Characteristics of Building Materials | Flame spread <25, smoke developed <450 |
| ASTM E119 | Fire Tests of Building Construction Materials | One hour non-load bearing rating with two layers of Type X Gypsum Vertical or horizontal installation | |
| FM 4880 | Class 1 Fire Rating of Insulated Wall, Ceiling and Roof Panels | Product approved (Exterior wall requires FM 4881, see Structural approvals) | |
| NFPA 259 | Test Method for Potential Heat of Building Materials | Potential heat of foam plastic insulation contained in the assembly tested in accordance with NFPA 285 | |
| NFPA 285-19 | Evaluation of Fire Propagation Characteristics of Exterior Non-Load Bearing Wall Assemblies | Panel assembly met the requirements of the standard | |
| NFPA 286 | Fire Tests for Evaluating Contribution of Wall and Ceiling Finish to Roof Fire Growth | Test specimen met the criteria of the IBC Section 803.1.2.1 | |
| Fire Canada | CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | One hour non-load bearing fire rating with two layers of Type X Gypsum |
| CAN/ULC S101 | Fire Endurance Tests of Building Construction and Materials | Meets 15 minute stay-in-place requirements | |
| CAN/ULC S102 | Surface Burning Characteristics of Building Materials and Assemblies | Meets the National Building Code of Canada requirements | |
| CAN/ULC S134 | Fire Test of Exterior Wall Assemblies | Complies with the fire-spread and heat-flux limitations required by the National Building Code of Canada | |
| CAN/ULC S138 | Fire Growth of Insulated Building Panels in a Full-Scale Room Configuration | Met the criteria of the standard | |
| Structural | ASTM E72 | Strength Tests of Panels for Building Construction | See load chart |
| ASTM E1592 | Structural Performance of Metal Roof and Siding Systems by Uniform Static Air Pressure Differences | See load chart | |
| FM 4881 | Class 1 Exterior Wall Structural Performance | See FM Global Requirements (Interior wall requires FM 4880, see Fire approvals) | |
| Thermal Performance | ASTM C518 | Steady-State Thermal Transmission Properties by Means of the Heat-Flow Meter Apparatus | K-Factor of 0.114 BTU.in/hr.ft2.°F at 35° F mean core |
| ASTM C1363 | Thermal Performance of Building Materials and Envelope Assemblies | See Thermal Performance Guide | |
| Air Infiltration | ASTM E283 | Rate of Air Leakage Through Curtain Walls Under Specified Pressure Differences | <0.01 cfm/ft.2 at 20 psf Vertical or horizontal installation |
| Water Infiltration | ASTM E331 | Water Penetration of Exterior Walls by Uniform Static Air Pressure Differences | No uncontrolled leakage when tested to a static pressure of 20 psf Vertical or horizontal installation |
| Special Approval | State of Florida | Product Approval for the State of Florida | Product has State of Florida approval |
